Mammoth

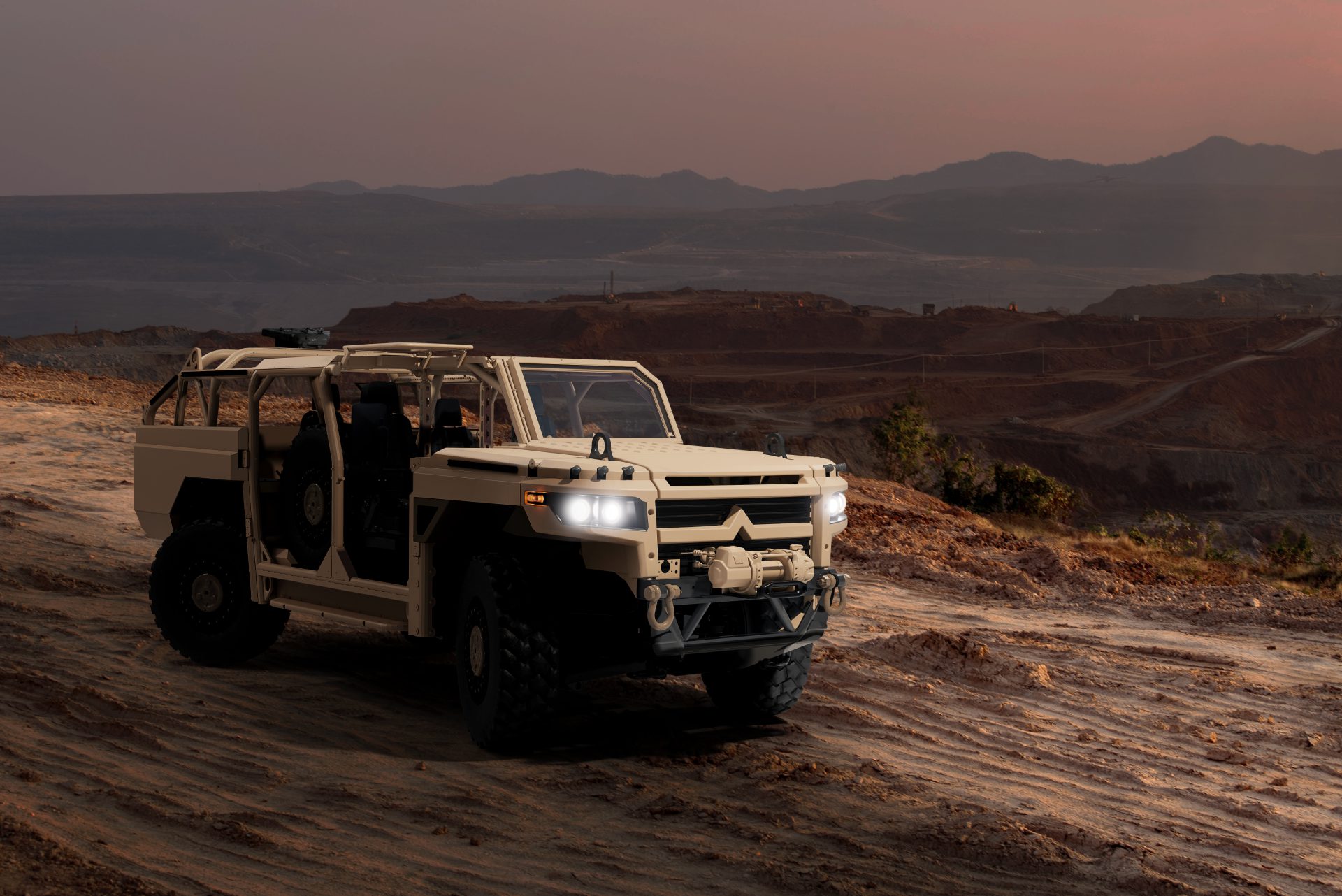

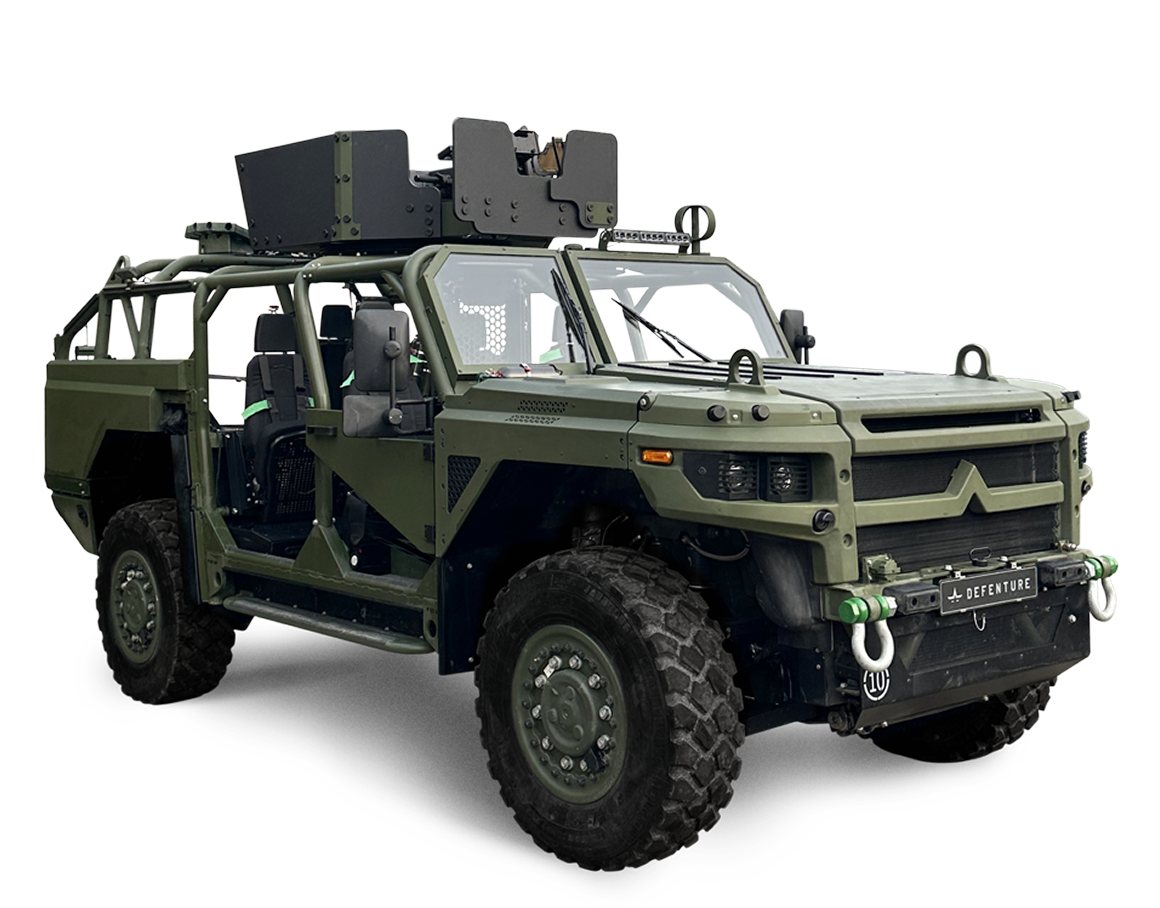

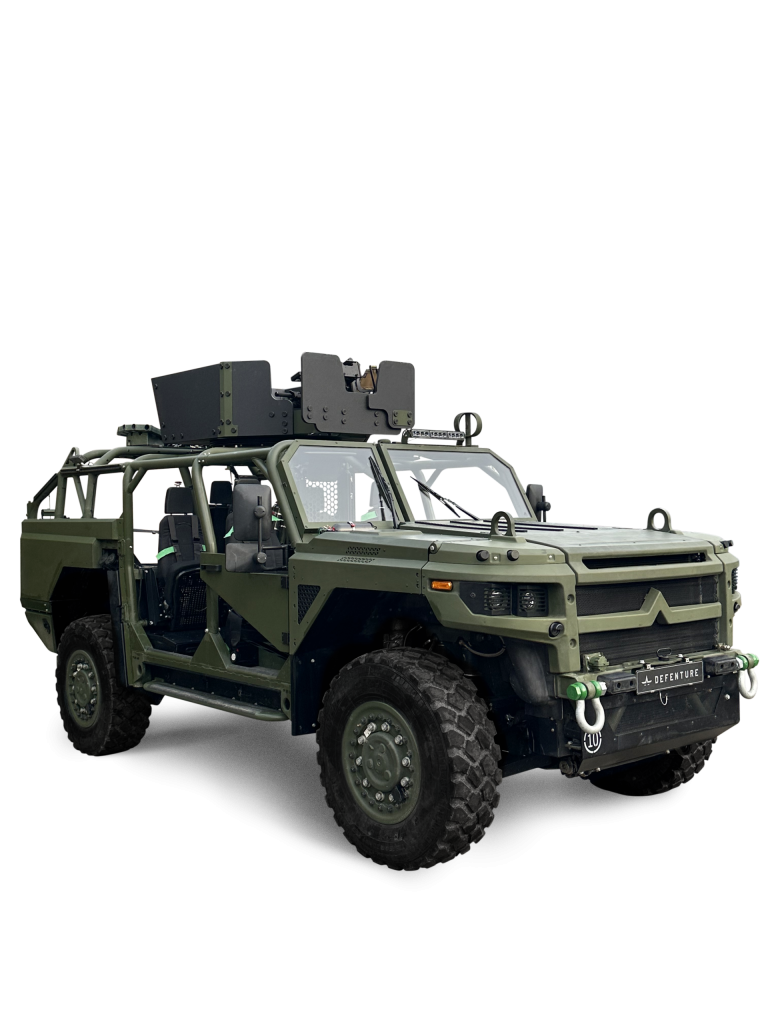

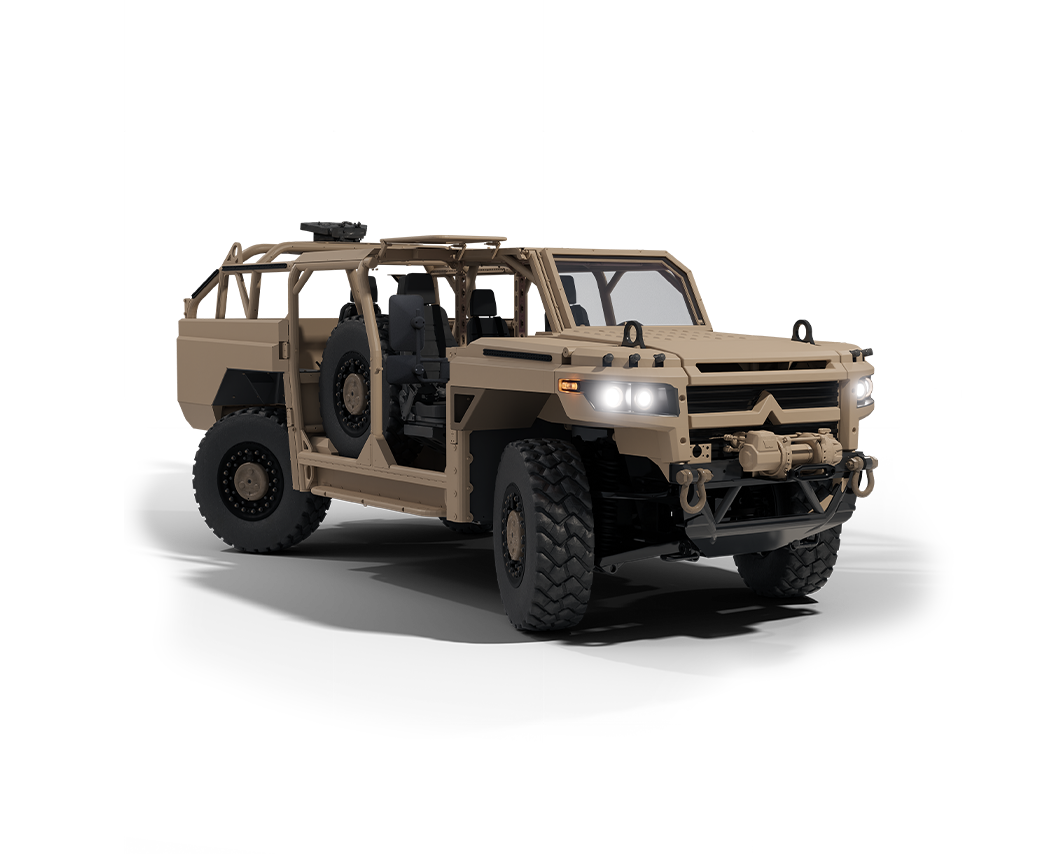

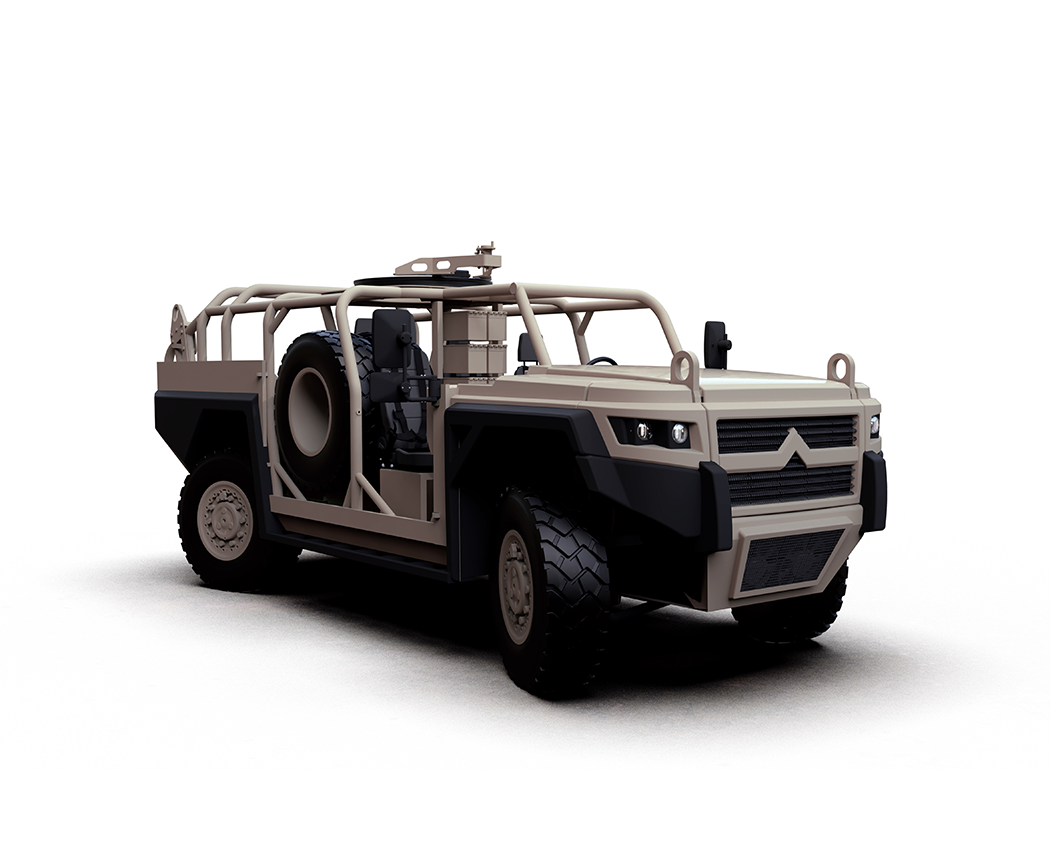

The Defenture Mammoth platform is a powerful and highly mobile tactical mobility solution. Built for extreme conditions, with high payload capacity and superior off-road performance. Based on the proven GRF platform, the Mammoth’s mobility and agility are comparable to military vehicles that weigh significantly less, which makes it unique.

What makes our mammoth exceptional?

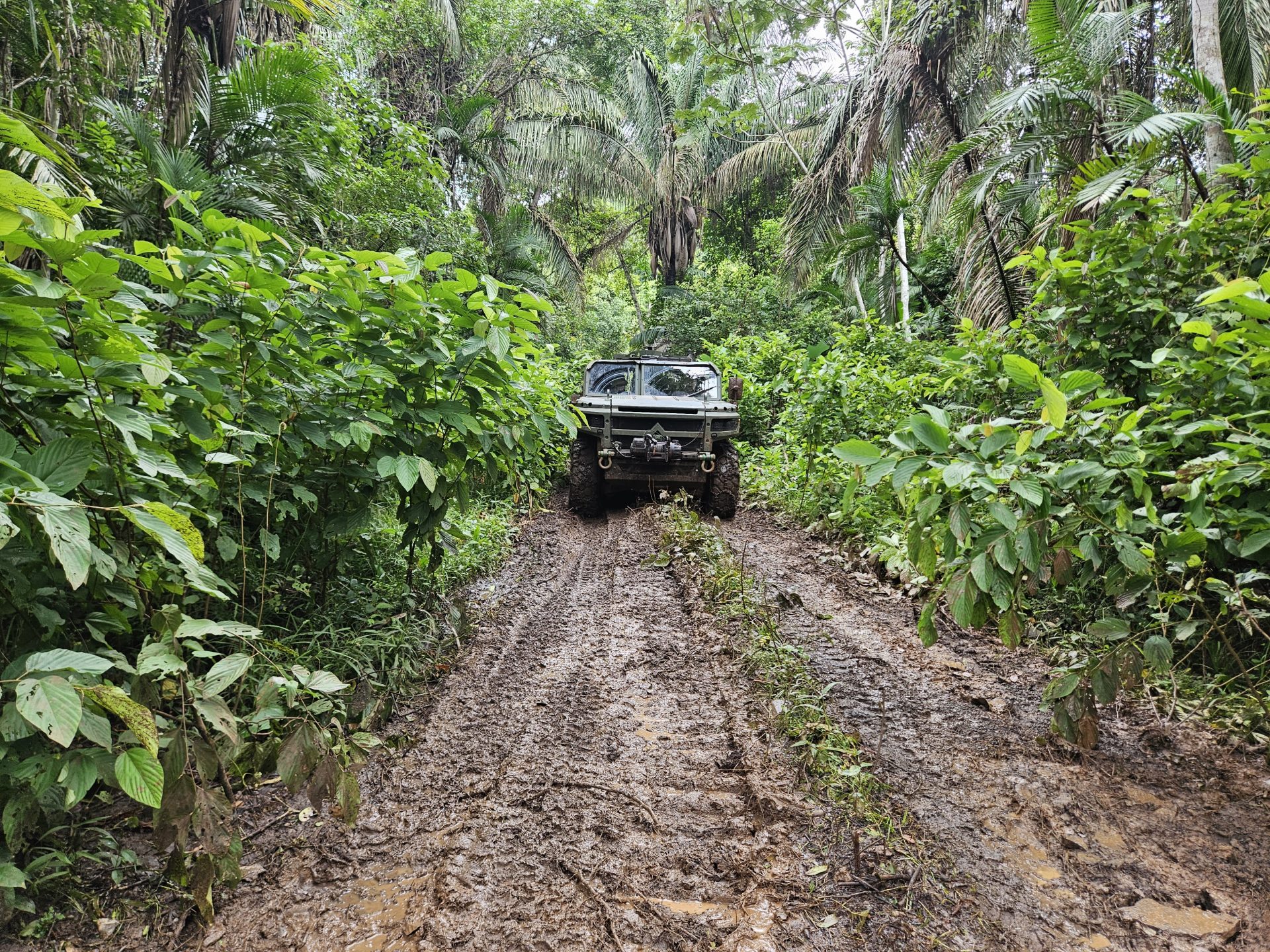

Off-road capabilities

Guranteeing the highest off-road capabilities and excellent military tactical performance while enabling a wide variety of the integration of sub-systems, the Mammoth can be supported by a modular ballistic protection concept.

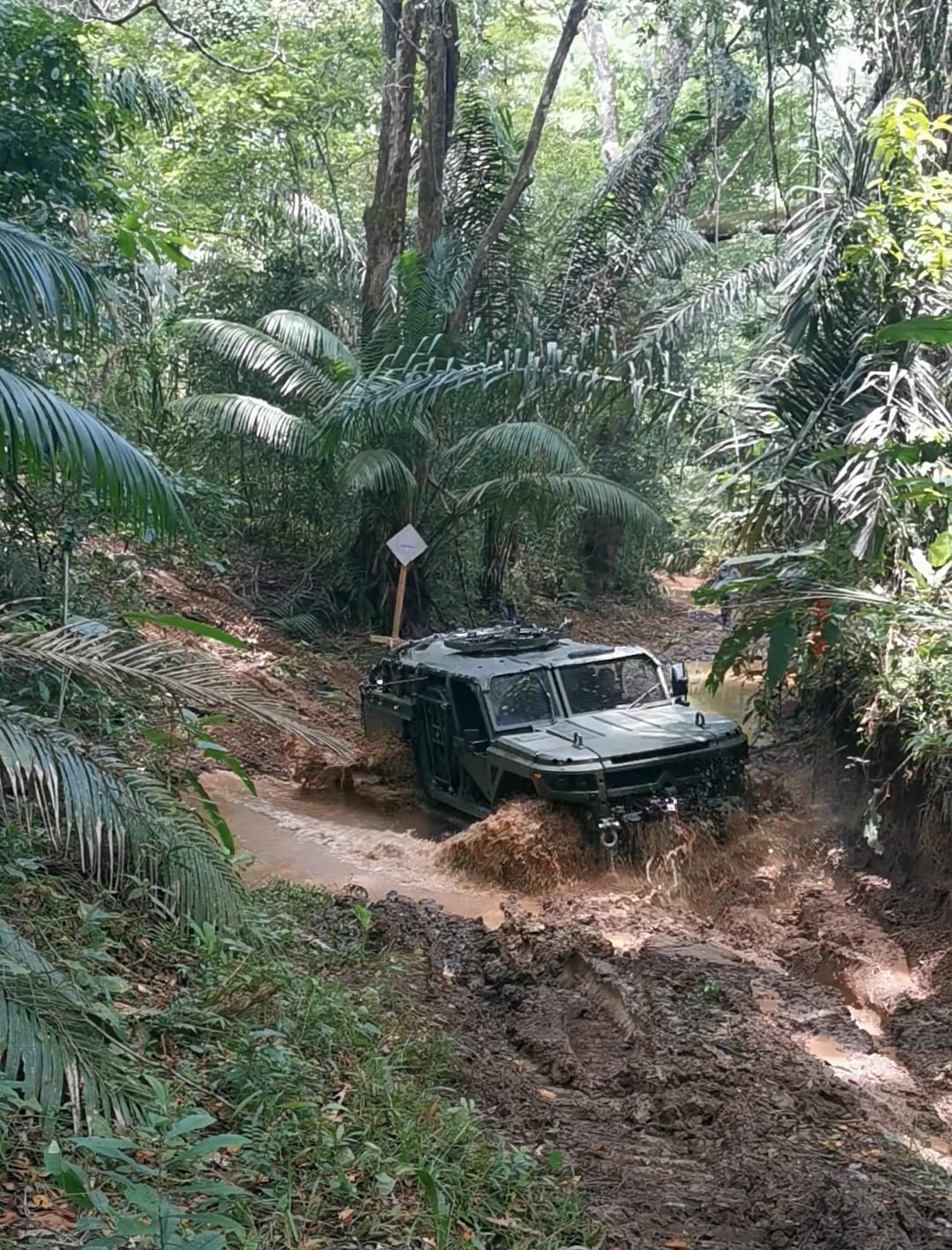

Fording ability

Engineered for reliability in challenging environments, its high ground clearance and optimized weight distribution ensure seamless water crossings without compromising on performance.

A powerful driveline

4-wheel steering and a state-of-the-art suspension system supported by a multifuel engine allows for the highest level of mobility in all theatres of operation.

Multirole, tactical and highly modular platform

Designed according to the latest military standards to increase safety and mobility while reducing lifecyle costs, the Mammoth is a scaled-up version of our well-known and proven GRF platform.

weight

Lightweight vehicle

helicopter

Air-transportable

four-wheel-steering

4-wheel steering

bulletproof

Modular ballistic protection

fording

Fording ability

Specifications

  • Weight (GVW): 8800 kg
  • Payload*: 3500 kg
  • Length: 5650 mm
  • Width: 2100 mm
  • Height: 2260 mm
  • Engine type: Multifuel 6 cylinder diesel
  • Driveline: 4WD Hi/Low range
  • Ground clearance: 366 mm
  • Fording (unprepared): 1000 mm
  • Vertical step: 425 mm
  • Turning circle (curb to curb): 11.5 m
  • Turning circle (wall to wall): 12.5 m
  • Angle of approach: 40.5⁰
  • Angle of departure: 40.5⁰
  • Breakover angle: 31⁰
  • Slide slope angle: 33⁰
  • Gradient: 60%
  • Range: 800 km
  • Fuel tank capacity: 164 litres
  • Max speed: 110 km/h Limited
  • Max power: 200 kW
  • Max torque: 610 Nm
  • Differential front/rear: Open with differential lock
  • Gearbox: 8 speed automatic
  • Brakes: Hydraulic + ABS + ESP
  • Steering: Power assisted
  • Suspension: Independent
  • Tyres: 335/80 R20
  • Ballistic protection: Mine blast and ballistic protection
  • Air transportability: C130, A400, C17, CH47 underslung
  • Operational environment: C2-limited to A1 (-40°C until +49°C) according to AECTP-230
  • EMC compliant: According to STANAG 4370, AECTP 500

*Payload depends on specific customer requirements/configurations.

INTERESTED in the mammoth? DOWNLOAD THE LEAFLET.

"*" indicates required fields

Consent*
This field is for validation purposes and should be left unchanged.

PLATFORM VARIANTS

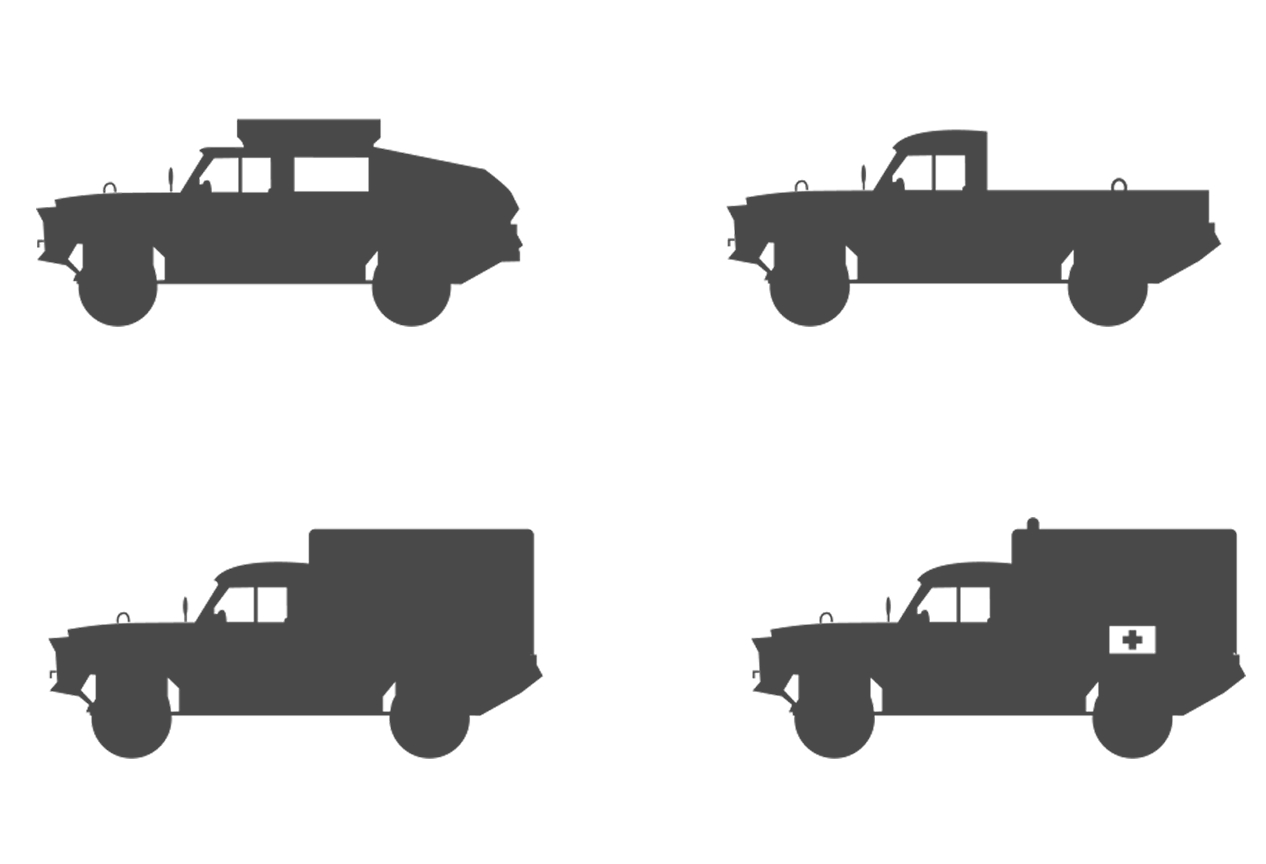

The modular Mammoth platform offers a range of platform variants, each designed to meet specific operational needs (CONOPS) while maintaining the same high standards of mobility and safety. Whether you need a light tactical solution as a reconnaissance, assault, MEDEVAC, mortar carrier or logistic configuration, we provide tailored solutions and system integrations to match your requirements.
